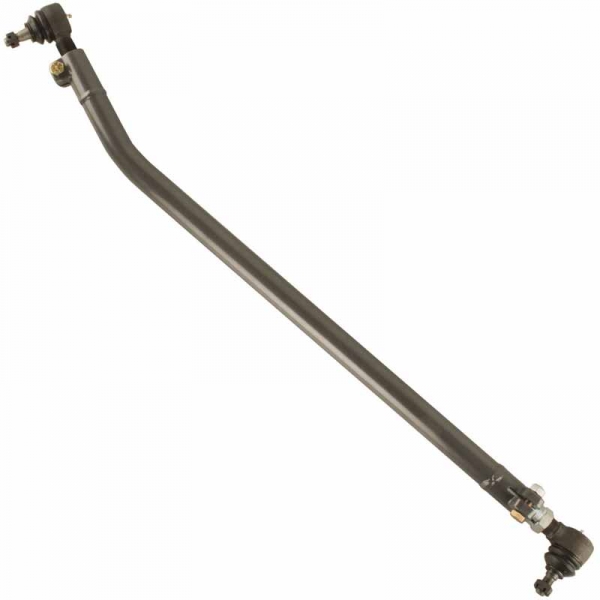

Synergy 8701-01 Heavy-Duty Drag Link

XDP has the Synergy 8701-01 Heavy-Duty Drag Link that will improve the ride quality of your 2013-2024 Ram 2500/3500. The Synergy Ram Heavy Duty Drag Link has a great design with components specific to the new radius arm Ram Truck platform. It is a direct bolt-in replacement for the factory drag link for an immediate upgrade in steering feel, stiffness, and strength. The drag link is manufactured from high-quality DOM steel tubing for maximum strength. It features a single plane tie rod end on the pitman arm side which stops drag link flop. You will not find a better drag link available!

Benefits:
Eliminates unwanted drag link flop
Compatible with stock wheels and tires
Drag Link length adjustable on the vehicle
Improves strength and steering feel and eliminates any chance of bending
Offers a more direct connection to the road compared to stock; no more bent drag links and constantly having to align your vehicle
Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance

Features:

• No factory drag link components need to be reused
• Drag Link is CNC formed from 1.50 inch x .250 wall DOM tubing
• Includes Synergy HD Metal on Metal Tie Rod Ends with oversized 1 inch shank
• Drag Link bolts right into the factory mounts with no additional wheel requirements
• Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Single Plane tie rod end used on the pitman arm side to prevent unwanted drag link flop
• Both ends of the bar use pinch bolts instead of jam nuts to simplify installation and adjustment
• 100% bolt-on components assure an easy, trouble-free installation with the use of basic hand tools
• Synergy Double Adjuster Sleeve allows adjustment of drag link length without removing it from the vehicle

Min/Max Length:
Measured in a straight line from the center of the tie rod end to the center of the tie rod end
Min collapsed length: 39.13"
Max extended length: 41.50"

Includes:
(1) 8701-01 Ram drag link
(1) 4160-L Ram single place tie rod end
(1) 4134-L Ram tie rod end
(1) Adjuster sleeve
(2) Pinch Bolts and hardware
